Low halogen & High flame retardant PP V2

Flame retardant system: Using phosphorus, bromine, and nitrogen as the main flame-retardant elements

Main application: Electric blanket connector, electric kettle base, car switchboard

Flammability rating: UL 94 V2

Glow Wire Grade: GWFI: 850/3.0mm

Features: Low density, low smoke emission, low mold corrosion, high flame retardant efficiency, and high cost-performance.

PS：We can provide you with free samples for evaluation and test, please feel free to contact us.

sales@polyrocks.com

Product Introduction

Products Introduction: 5003S(+) flame retardant reaches UL94-V2 (1.5mm and 3.0mm), glow wire test meets GWIT750℃ and GWFI 850℃. 5003N(+) has passed UL certification and meets the product requirements of RoHS, SVHC, PFOS&PFOA, 17P, Halogen-free, PAHs and other regulations. 5003N(+) also has the characteristics of low density of finished products, low smoke emission and low mold corrosion.

Low halogen

Product Feature

Needle Flame Tester

Low Halogen FR PP

Application: Electric blanket connector, electric kettle base, car switchboard.

Multiple certification guarantee
Reach Certification,
RoHs Certification,
ISO9001:2015 Certification,
IATF16949:2016 Certification, etc.

Glow Wire Tester

UL94 V0

Flame retardant performance: Using phosphorus, bromine, and nitrogen as the main flame-retardant elements

Temperature: GWFI 850/3.0mm

Characteristic: Low density, low smoke, low mold corrosion, high flame retardant efficiency, and high cost-performance.

Property Index

Specification	Test Method	Unit	Low halogen & High flame retardant PP
Specification	Test Method	Unit	Type S1	Type S2	Type S3
density	ASTM D-792	g/cm3	0.91	0.95	0.91
Melt index (230℃/2.16kg)	ASTM D-1238	g/10min	5	4	12
Tensile Strength	ASTM D-638	MPa	35	35	28
Elongation at break	ASTM D-638	%	120	80	200
Bending strength	ASTM D-790	MPa	35	40	30
Flexural modulus	ASTM D-790	MPa	1200	1500	1100
Izod notched impact strength	ASTM D-256	J/m	38	35	70
Flammability	UL 94	1.5mm	V-2	V-2	V-2
Flammability	UL 94	3.0mm	V-2	V-2	V-2
Glow Wire	IEC 60695-2-13	GWIT:750/3.0	Pass	Pass	Pass
Glow Wire	IEC 60695-2-12	GWFI:850/3.0	Pass	Pass	Pass

Remark: The above laboratory test data are just for reference only; it's not a basis for quality assurance.

Application

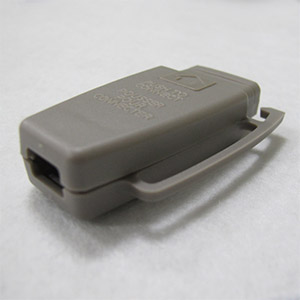

Electric blanket connector

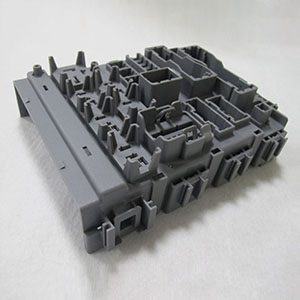

Automobile switchboard
Kettle base
